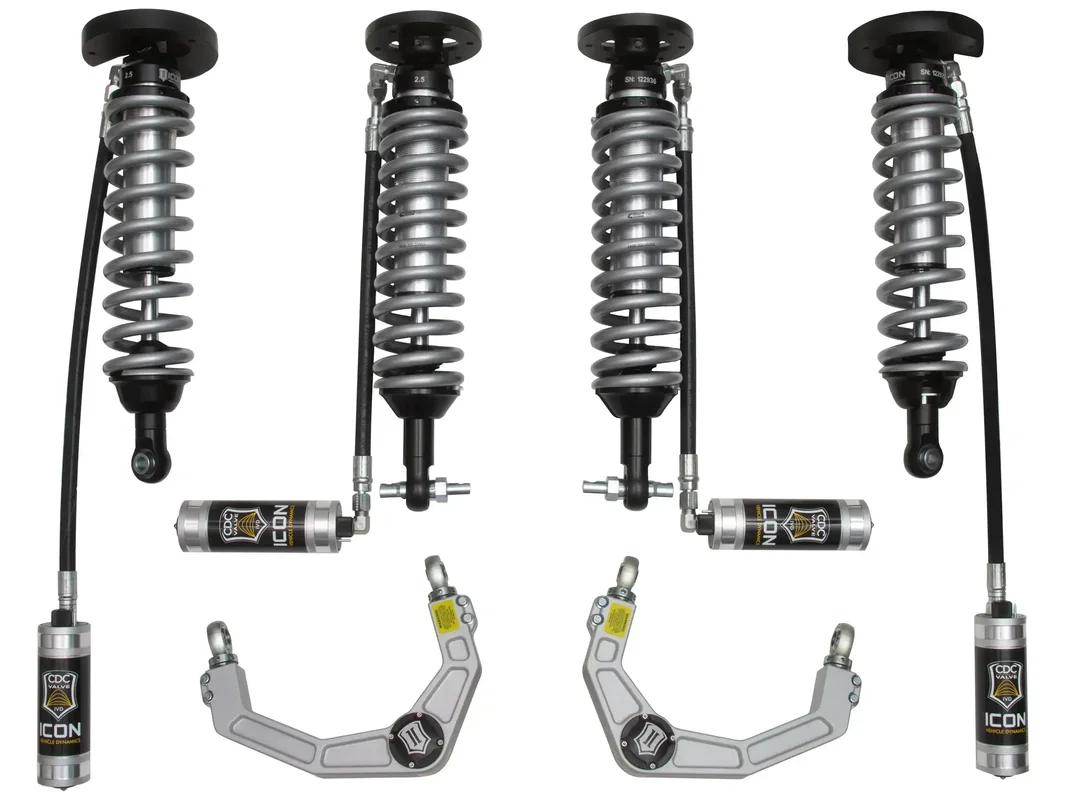

ICON Vehicle Dynamics FRDK_K93302 2014-2020 FORD EXPEDITION 4WD .75-2.25″ STAGE 2 SUSPENSION SYSTEM W BILLET UCA-Fast Shipping

Description

This system features upper control arms with ICON’s patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.r

• Increased wheel travel and ride quality over stock with no change in towing capacity

r

• 100% Bolt-on system – no cutting, or welding necessary for install

r

• Unique valving developed specifically for the 2014-2020 Expedition

r

• Vehicle specific tuned front and rear shocks for superior damping and vehicle control

r

• Adjustable coilovers from .75-2.25″ of lift height

r

• Billet Aluminum Upper Control Arms for added strength, durability, adjustability, and alignment spec range

r

• 6061 Aircraft grade aluminum CNC machined components

r

• Corrosion resistant CAD plated coilover shock body with 7/8″ shaft

r

• High strength alloy CNC machined lower bar pin

r

• FK rod end bearings for extended longevity and minimal deflection

r

rr

Attributes:

r

r
• GTIN: 00840103420608

r

• Brand Name: ICON Vehicle Dynamics

r

• 2064: Steel

r

• 2371: Yes

r

• 30: Yes

r

• 3096: Silver

r

• 3097: Yes

r

• 3390: Performance

r

• 5520: 2.25

r

• 7325: 2

r

• 7326: 2

r

• Add-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)

r

• OEM Wheels & Tires Fitment: Yes

r

• Recommended Aftermarket Tires: 33″ x 11.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

r

• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset

r

rr

Extended Information:

r

r
• Country of Origin: United States

r

• Emissions : Emissions Compliance Exempt

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1.0

r

• Package UOM: EA

r

• Dimension: 31.0000 x 13.0000 x 7.0000 inches

r

• Weight: 143.0000 lb
