Description

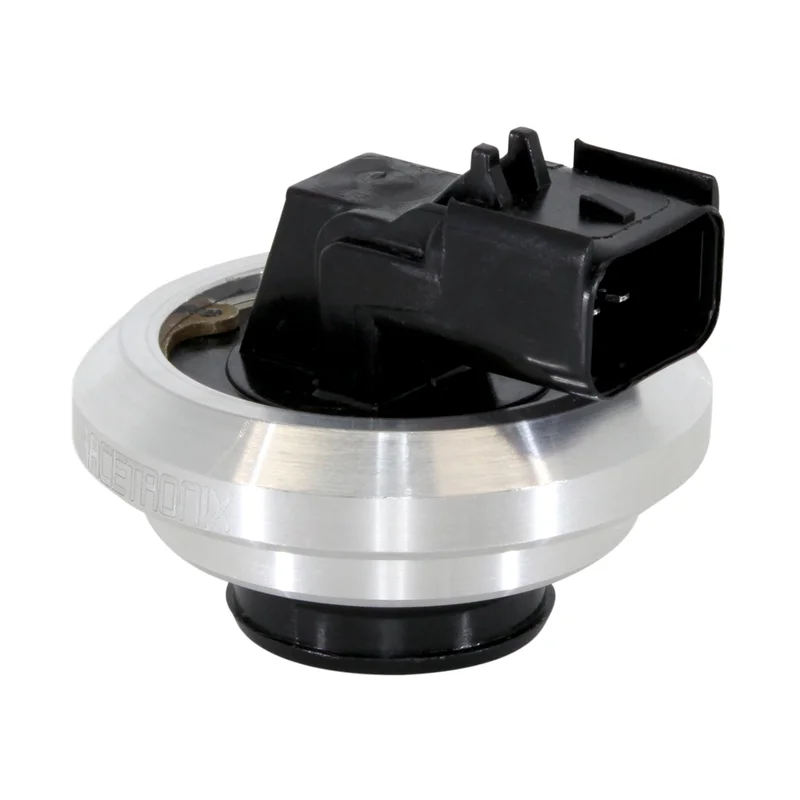

BUNG-BCAPX28WAL, Bulkhead Wiring Assembly, 6-Conductor, Weld-In 6061-T6 Aluminum
6-Conductor Bulkhead Connector, 30 Amps per terminal (max ICS)
6061-T6 Aluminum weld-in bung
Viton/FKM seals, Gas & E85 compatible
Installs on any flat surface with a 2″ hole
Vapor and liquid proof
Plug & Play 6-position atmosphere and vapor-side connectors available
The BUNG-BCAPX28WAL makes it easy to install up to six individual electrical circuits into your fuel tank. The 6-conductor bulkhead connector can handle up to 30 amps (ICS) which is enough to support the latest high-flow in-tank pumps. The 6061-T6 aluminum bung can be TIG welded on top of an aluminum fuel tank, fuel cell, surge tank, etc. The bung requires a 2″ (51mm) hole.
The 6-conductor APEX 2.8 bulkhead connector must be removed with a pair of c-clip pliers prior to welding in the bung to prevent heat damage. A flat circular area of 65mm (2.6″) is recommended for the installation area.
PARTS INCLUDED:
1 x 6-conductor APEX 2.8 bulkhead connector
1 x Viton/FKM o-ring
1 x Retaining ring (c-clip)
1 x Weld-in bung – 6061-T6 Aluminum
1 x Silicon grease packet
Mating connector sets are required for the atmosphere and vapor-side connections listed under add-ons below.
