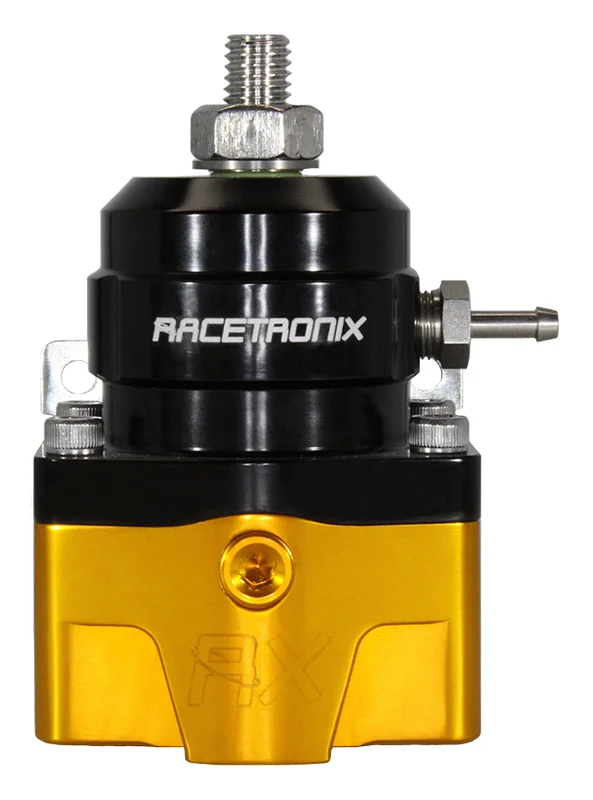

REG-FI886BG – Fuel Pressure Regulator, EFI -8 / -6 AN E85, Black/Gold
New distinctive design
Fuel pressure tracks boost / vacuum at 1:1 ratio
Composite fiber reinforced E85, Gas, & Diesel compatible diaphragm
35-78 PSI adjustment range (maximum)
1/8″ NPT female gauge port with matching color plug
2 x -8 ORB inlet ports
1 x -6 ORB return port
5mm Allen adjustment screw with 17mm lock nut
O-ring sealed adjustment screw
1/8″ Female NPT vacuum/boost port
1 x 5/32″ barb adapter – included
Mounting bracket
Stainless Hardware
Anodized black top / gold bottom
Field serviceable
Fully assembled and tested
