Description
Features:

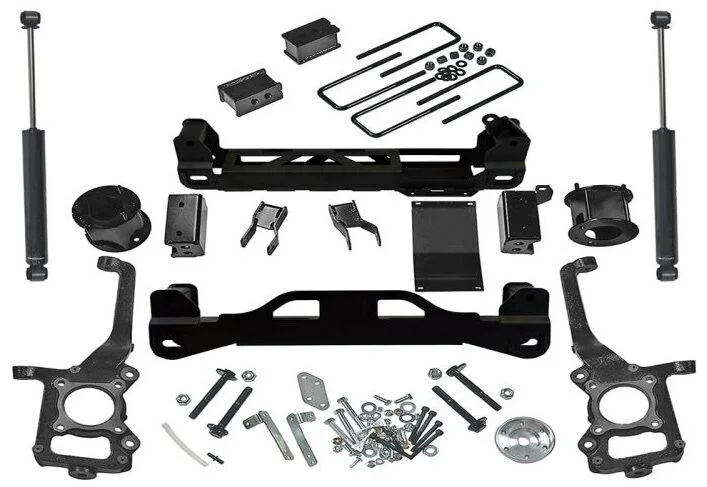

* Replacement Knuckle style suspension lift kit v * Direct bolt-on (No Weld Design)
* Allows the use of 18″ or larger factory wheels
* Allows clearance for up to 35″ tires
* Aligns to OEM Specifications
* Included Enthuze Shocks are a ten stage, velocity sensitive valved, gas pressurized shock with polyurethane bushings
Benefits:
* Aligns to OEM Specifications
* Maintains ride quality and handling characteristics
* Corrects Front to Rear factory rake
* Retains OEM Track Width
* Designed using Original Equipment (OE) CAD data for accuracy
Front:
* CNC Machined extended ductile iron steering knuckles
* CNC machined billet aluminum driveshaft spacer
* All fabricated steel components are laser cut, CNC formed finish with a durable powder coating
* Front top mount strut spacers
* One-piece front and rear cross members
* Front differential skid plate
* Sway-bar relocation brackets
* Differential relocation brackets
* Brake line relocation brackets
* Eccentric cam-bolts
Rear:
* Fabricated rear Blocks — provides proper pinion angle to eliminate axle wrap and driveline vibrations
* Brake line relocation brackets
* U-bolts and hardware
* Compression stop extensions
* Enthuze Shocks
Notes:
* Installation time: 8 hours
* Difficulty level: 3 of 5
* Does not fit Single Cab Truck models
* Models equipped with a two-piece rear driveshaft will need to order an additional kit box 9935 for the carrier bearing shims
Specifications:
| _MKT | Features: * Replacement Knuckle style suspension lift kit v * Direct bolt-on (No Weld Design) * Allows the use of 18″ or larger factory wheels * Allows clearance for up to 35″ tires * Aligns to OEM Specifications * Included Enthuze Shocks are a ten stage, velocity sensitive valved, gas pressurized shock with polyurethane bushings Benefits: * Aligns to OEM Specifications * Maintains ride quality and handling characteristics * Corrects Front to Rear factory rake * Retains OEM Track Width * Designed using Original Equipment (OE) CAD data for accuracy Front: * CNC Machined extended ductile iron steering knuckles * CNC machined billet aluminum driveshaft spacer * All fabricated steel components are laser cut, CNC formed finish with a durable powder coating * Front top mount strut spacers * One-piece front and rear cross members * Front differential skid plate * Sway-bar relocation brackets * Differential relocation brackets * Brake line relocation brackets * Eccentric cam-bolts Rear: * Fabricated rear Blocks — provides proper pinion angle to eliminate axle wrap and driveline vibrations * Brake line relocation brackets * U-bolts and hardware * Compression stop extensions * Enthuze Shocks Notes: * Installation time: 8 hours * Difficulty level: 3 of 5 * Does not fit Single Cab Truck models * Models equipped with a two-piece rear driveshaft will need to order an additional kit box 9935 for the carrier bearing shims |
| _DES | Enthuze Lift Kit 6″ |
