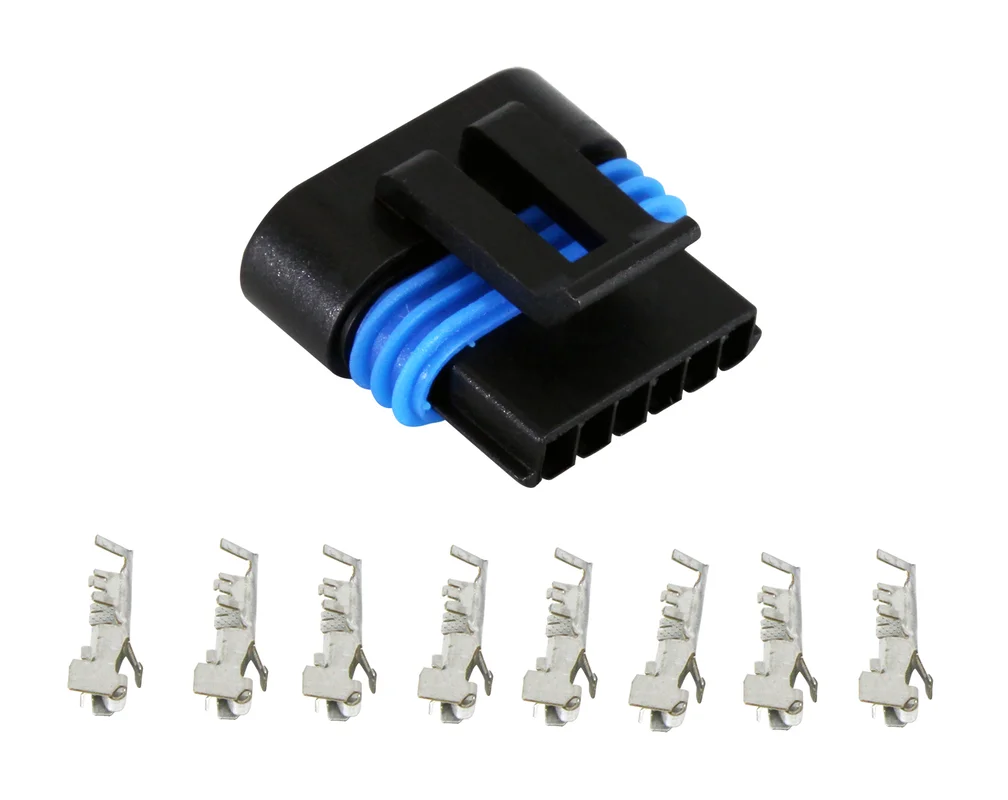

RCS-047 – Delphi 6-Way M/P 150.2 Connector Set – Throttle Position Sensor (TPS)
This connector set is commonly used on late model GM Corvette engine harnesses for the engine’s throttle position sensor. Typical applications are repair or conversions / upgrades.
FEATURES:
Fully Plug and Play with the factory TSP sensor
OE-type weatherproof connector
8 terminals included (2 spare) recommended for use with 18-16 gauge wire
Recommended wire O.D. is 1.65 to 2.15mm
TERMINAL DESIGNATIONS:
|
Throttle Position (TP) Sensor #1 – 5V Reference |
Dark Green / White |
|
Throttle Position (TP) Sensor #1 – Ground |
Purple |
|
Throttle Position (TP) Sensor #1 – Signal |
Dark Blue |
| Throttle Position (TP) Sensor #2 – 5V Reference | Yellow / Black |
| Throttle Position (TP) Sensor #2 – Ground | White |
| Throttle Position (TP) Sensor #2 – Signal | Pink |
