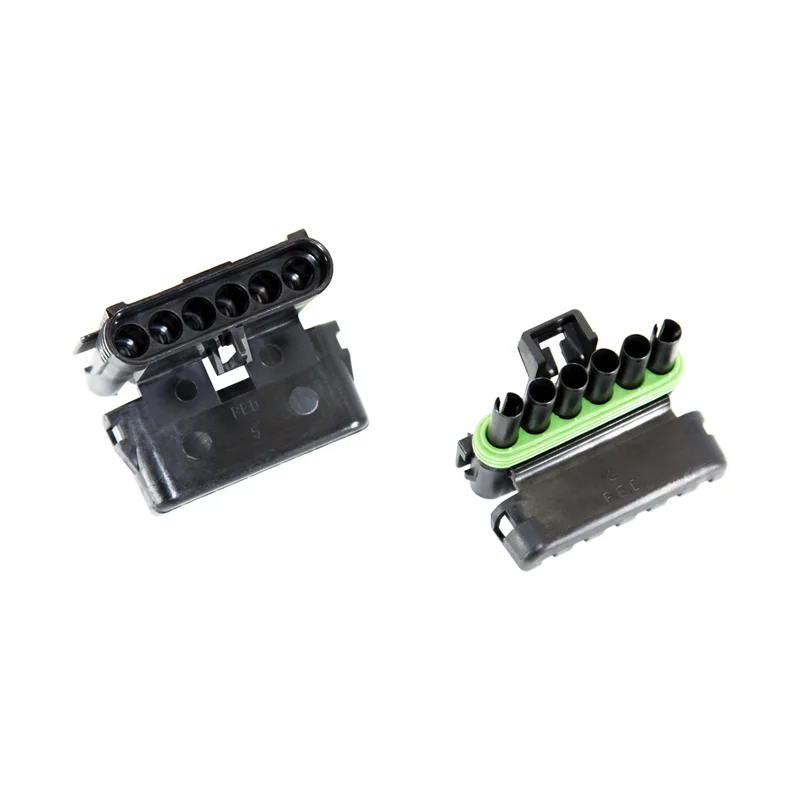

RCS-015 – Connector Set, 6-Way Weather-Pack
This weatherproof connector set is recommended for the following medium-currect applications:

Lighting

Fuel Pumps

Water Pumps

Ignition Systems

SPECIFICATIONS (KIT):

WIRE O.D. (mm): 2.03-2.85 (GREEN)

WIRE O.D. (mm): 3.45-4.30 (BLUE)

WIRE GAUGE (AWG): 12 Max.

KIT INCLUDES:

1 x Female Connector Body

1 x Male Connector Body

14 x Cable Seals (Green)

14 x Cable Seals (Blue)

7 x Male Terminals (1 spare)

7 x Female Terminals (1 spare)

NOTE: Proper B-type crimpers and soldering equipment are recommended to properly assemble this connector set.
CONNECTOR SPECIFACTIONS:

CURRENT RANGE (AMPS): 0-20

TEMP RANGE °C: -40 to 125

RESISTANCE: mOhm@20mV

VOLTAGE DROP:

CENTERLINE SPACING (mm): 7.7

BLADE WIDTH (mm): Pin and Sleeve
