Description
RCS-025 – Connector Set, 2F GT150S (LS2/3 Knock Sensors)
This weatherproof connector set is recommended for the following medium-currect applications:
LS2/3 Knock Sensors
IAT
SPECIFICATIONS (KIT):
WIRE O.D. (mm): 1.86-2.25 (BLUE)
WIRE GAUGE (AWG): 18 Max.

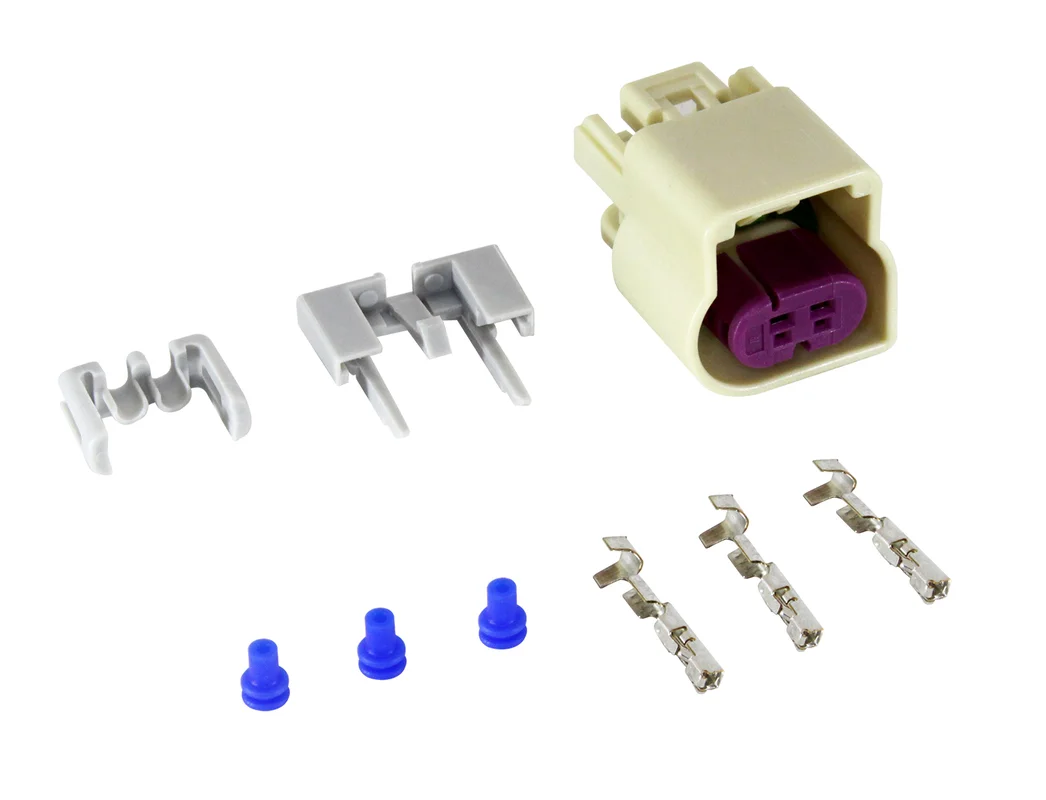

KIT INCLUDES:
1 x Female Connector Body
1 x 2 -Way Terminal Locks
1 x 1 -Way Connector Locks
3 x Cable Seals (Blue) (1 spare)
3 x Female Terminals (1 spare)
Proper B-type crimpers and soldering equipment are recommended to properly assemble this connector set.
CONNECTOR SPECIFICATIONS:
CURRENT RANGE (AMPS): 0-15
TEMP RANGE °C: -40 to 125
RESISTANCE:
VOLTAGE DROP:
CENTERLINE SPACING (mm): 4.5
BLADE WIDTH (mm): 1.5
