Description

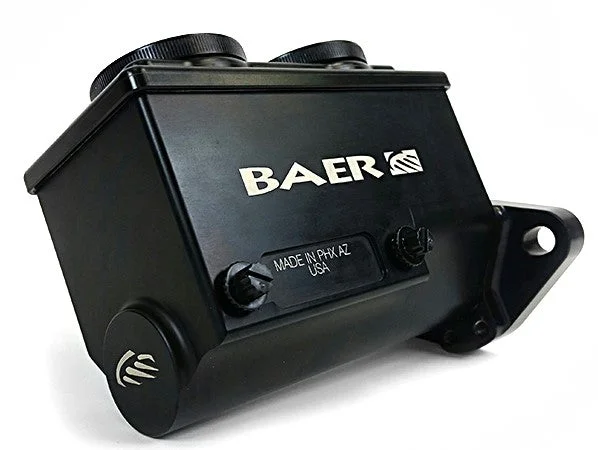

This Remaster master cylinder features a small, compact, 1-piece body machined out of 6061 T6 billet aluminum with a 15/16″ bore, left side ports and a 2-bolt mounting flange fitting many Ford and GM applications. The billet top is attached with 6 allen screws and has two large billet aluminum, knurled screw-on caps making for easy filling without spillage. The unique outlet port design allows for either inverted flare (w/included removable seats) or banjo style, straight fittings. The Remaster is compatible on most long and short, w/included bullet, boosters or manual brake applications. Optional proportioning valves also available
Specifications:
| 7699 | No |
| 5005 | No |
| 644 | No |
| 9562 | No |
| 353 | No |
| Grade Type | Premium |
| 646 | Yes |
| 647 | 6061 T6 billet aluminum |
| 30 | No |
| 652 | Yes |
| 1751 | 6061 T6 billet aluminum |
| 9570 | Integral |
| 653 | Dual |
| 8073 | No |
| Area | 0.69 |
| Bore Size | 15/16 |
| Bore Size | 0.9375 |
| Box Count | 1 |
| Brand | Baer Brakes |
| Connector For Warning Light | No |
| Emission Code | 6 |
| Export | Brake Components |
| Fittings Included | Yes |
| Flange Type | 2 Bolt GM/Ford |
| Includes | 1x Master Cylinder Assembly, 2 Brass Seats, 2 Tube Nuts |
| Master Cylinder Outlet Port Fittings | Banjo w/o Brass Seat |
| Master Cylinder Outlet Port Fittings | 3/16″ Inverted Flare and Tube Nuts w/ Brass Seat |
| Master Cylinder Outlet Port Quantity | 2 |
| Master Cylinder Outlet Port Size | 3/8-24 |
| Master Cylinder Port Exit | Left side |
| Product Line | Master Cylinder Assembly |
| Prop 65 – Short Label | WARNING: Cancer Harm – |
| Quantity | Sold Individually |
| Remaster Body Color | Black |
| Remaster Body Finish | Anodized |
| Remaster Caps Color | Black |
| Remaster Caps Finish | Anodized |
| Remaster lid Color | Black |
| Remaster lid Finish | Anodized |
| Removable Seats | Yes |
| Reservoir Size | 7oz per reservoir, Fill to 75% or 5.25oz per reservoir |
| Series | ReMaster |
| Stroke | 1.1 |
| System Notes | black anodized,15/16IN bore,left port |
| Title | ReMaster Master Cylinder 2-Bolt GM/Ford, Black Anodized Finish, Left Port, 0.9375″ (15/16″) Bore |
| Universal Or Specific Fit | Universal |
| Volume Ratio | 2:1 |
| Category | Brake |
| part type | Brake Master Cylinder |
| Sub Category | Brake Hydraulics |
| _SHO | ReMstr Black Anod LP |
| _INV | ReMaster 15/16″ Left Port Blk 2-Bolt |
| _ASC | Ships in 1 Box |
| _DES | ReMaster 2-Bolt GM/Ford Master Cyl Assembly, Black, 15/16in bore, Left port. |
| _EXT | Baer Brakes Remaster Master Cylinder: A small, compact, 1-piece body machined out of 6061 T6 billet aluminum, 15/16 in. Bore, Left Side Ports, Black Anodized, with a 2-bolt mounting flange fitting many Ford and GM applications. |
| _MKT | This Remaster master cylinder features a small, compact, 1-piece body machined out of 6061 T6 billet aluminum with a 15/16″ bore, left side ports and a 2-bolt mounting flange fitting many Ford and GM applications. The billet top is attached with 6 allen screws and has two large billet aluminum, knurled screw-on caps making for easy filling without spillage. The unique outlet port design allows for either inverted flare (w/included removable seats) or banjo style, straight fittings. The Remaster is compatible on most long and short, w/included bullet, boosters or manual brake applications. Optional proportioning valves also available |
| _FAB | 2-Bolt GM/Ford Firewall Mounting Bracket |
| _FAB | Fully machined 6061 T6 billet aluminum construction |
| _FAB | Unique 3/8-24 outlet port design allows for either inverted flare (w/included removable seats), banjo style or straight fittings. |
| _FAB | Left Side Ports |
| _FAB | Machined and knurled screw-on caps for easy access to fill without spillage |
| _FAB | Anodized Remasters feature laser-etched logos |
