Description
Product

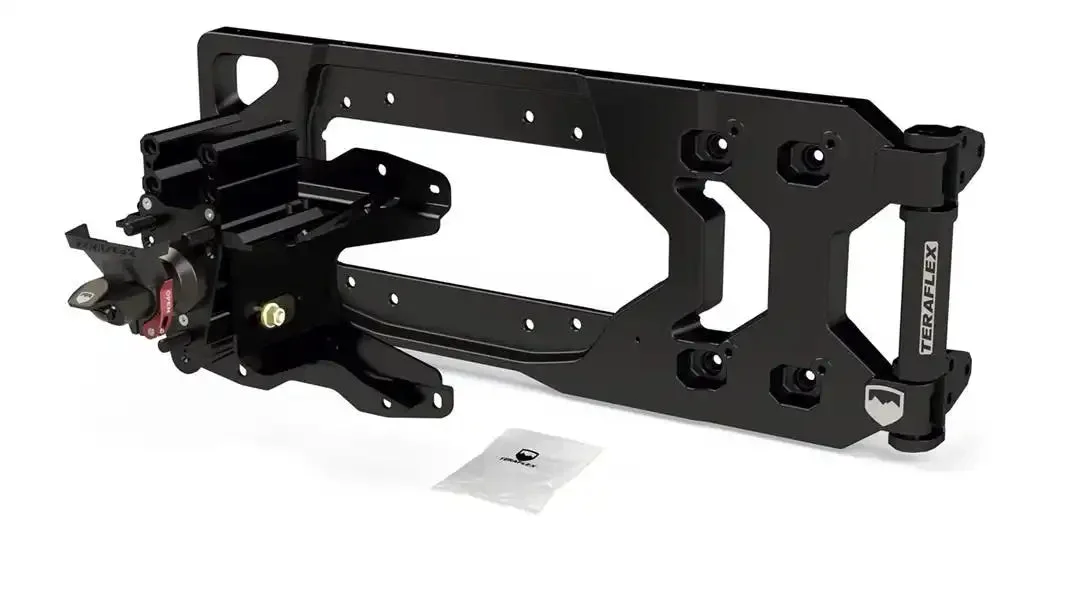

Designed to accommodate up to a 40 Inch tire, the TeraFlex JL, Alpha HD Hinged Spare Tire Carrier and Alpha HD Adjustable Spare Tire Mount will secure your full-size spare tire over the most extreme trails and rugged terrain. It also provides easy access to the rear cargo area in one smooth action. Alpha HD Hinged Spare Tire Carrier: Using the factory tailgate hinge mounting points spreads the load of the spare tire over a larger area for maximum strength and durability. Internal gussets and bracing in the stock JL body supports the Alpha HD Hinged Spare Tire Carrier and oversized tire, which eliminates all stress from the tailgate. Compared to the JK piece, the new JL, Alpha HD Hinged Spare Tire Carrier spans nearly the width of the tailgate for better weight distribution. Additionally, the updated design features a one-piece, forged steel hinge that ties the top and bottom factory hinge locations together as well as additional vertical braces for increased strength. The Alpha HD Hinged Spare Tire Carrier also provides additional mounting points for off-road accessories such as a recovery jack and fluid containers. The adjustable Tire Carrier is constructed from strong and lightweight 6061-T6 extruded aluminum. Alpha HD Adjustable Spare Tire Mount, Although the Alpha HD Adjustable Spare Tire Mount can be used alone, it has been designed to be installed in conjunction with the Alpha HD Hinged Spare Tire Carrier. The Tire Mount can support the additional weight of a full-size spare tire by securely mounting the tire to the Tire Carrier and Tire Carrier; HD Hinged Carrier; Tailgate Mount/ Tailgate Hinge Mount; 40 Inch Maximum Tire Size; Black; Aluminum Spare Tire Reinforcement Bracket And Tire Carrier/ Steel Hinges; Direct Fit; 5 x 5 Inch Bolt Pattern
Attributes
- Tire Mount Location: Tailgate Mount
- Maximum Tire Diameter (IN): 40 Inch
- Finish: Powder Coated
- Color: Black
- Material: Aluminum
- Estimated Install Time (Hours): 1
Features & Benefits
- Heavy-Duty Forged Steel Brackets And Mid-Carbon Hardened Steel 5/8 Inch Hinge Pins
- Hinged Carrier Constructed From Strong And Lightweight A356.2 Aluminum
- Adjuster Made From Strong And Lightweight 6061-T6 Extruded Aluminum
- Innovative And Unique Design With Easy Adjustability
- Maintains Single-Handed Entry To The Rear Cargo Area
- Threaded Mounting Holes For Mounting Accessories Such As Hi-Lift And CB Antennae Brackets
- FEA Validation, ASTM, And SAE Testing Procedures
- OEM Quality UV Resistant Powder Coat Finish With 3,000-Hour Accelerated Weather Testing
- Spare Tire Mount Is Formed And Welded From CNC Laser Cut Steel For Superior Strength
- Limited 1 Year Warranty
