Description
Attributes
- Pressure Range (PSI): 3 To 20 Pounds Per Square Inch Low/ 20 To 60 Pounds Per Square Inch High Pressure Spring
- Fuel Type: Gasoline/ Alcohol
- Regulator Location: Inline
- Regulator Type: Return
- Shape: Square
- Inlet Size: 3/8 Inch (-6 AN)
- Inlet Quantity: 1
- Inlet Attachment: Female O-Ring
- Outlet Size: 3/8 Inch (-6 AN)
- Outlet Quantity: 3
- Outlet Attachment: Female O-Ring
- Return Port Size: 3/8 Inch NPT
- Finish: Anodized
- Color: Black Top And Red Base
- Material: Aluminum
- Gauge Port: Yes
- Includes Fittings: Yes
- Includes Mounting Brackets: Yes
Product

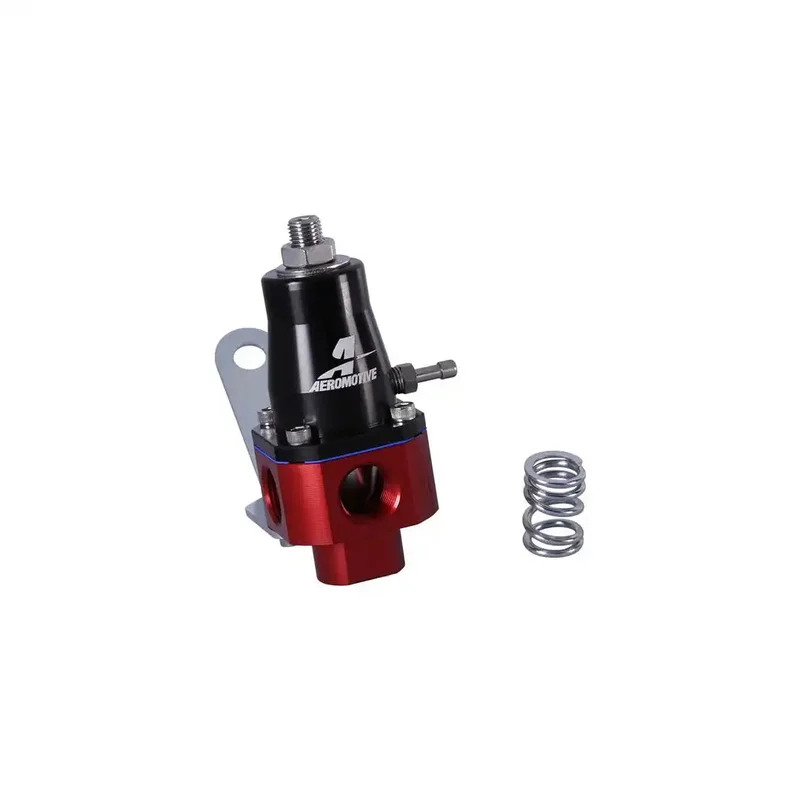

A dual purpose, universal regulator for electronic fuel injection or carbureted and street or strip applications. Base pressure adjustable from 3 to 20 PSI with standard spring, (installed) or from 20 to 60 PSI with high pressure spring (included). Offers the full flow and rock steady fuel pressure that only a dynamic, Aeromotive bypass regulator provides.
Features & Benefits
- Capable Of Regulating Any Fuel Pump Between 100 And 250 Gallons Per Hour
- Bypass Design Provides The Ultimate, Dynamic Fuel Pressure Control
- Fuel Pressure Rises On A 1:1 Ratio When Referencing Boost
- All Ports Are 3/8 Inch NPT, With One Inlet And Three Outlets On The Main Body And One Return Port On The Bottom
- Limited 1 Year Warranty
