Description

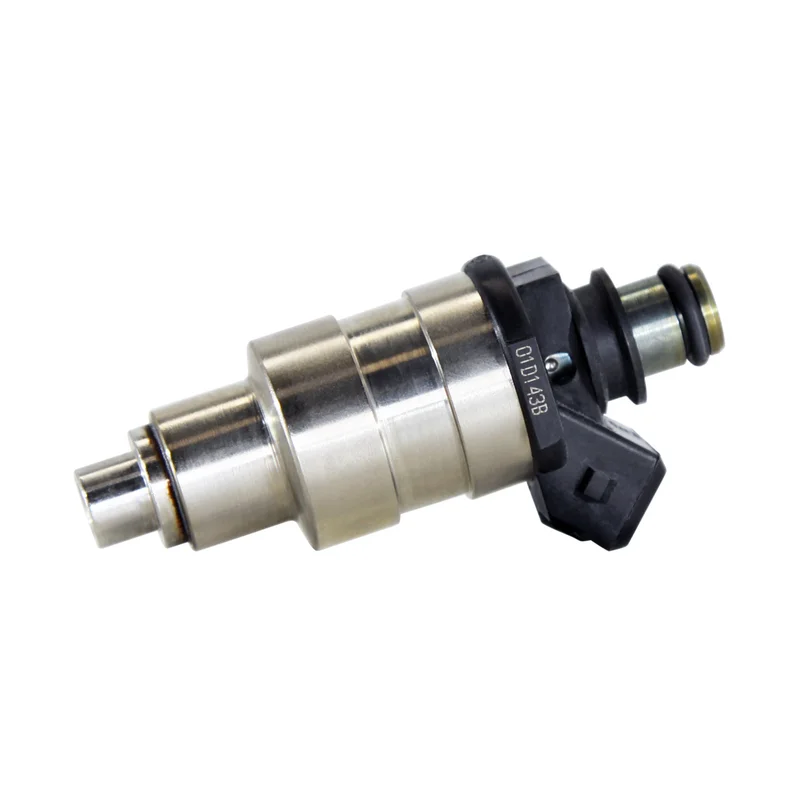

01D141x – 72 lb/hr Low-Impedance Import Fuel Injector
These are factory new injectors. We do not offer reconditioned / used injectors.
FEATURES:
Low-impedance coil works with peak / hold injector drivers.
Injectors sold in packs are dynamically flow-matched to within 1% tolerance.
Injectors sold as each are as per factory tolerance specified.
High-speed disc action allows wider dynamic flow range for improved idling and quieter operation
Design resists build up deposits which can affect fuel flow and cause clogging
No fuel leakage for quicker starts
Longer service life
O-ring lubricant supplied
SPECIFICATIONS:
Static flow: 68.8 lb/hr (520 grams/min)
Dynamic flow: 16.74 mg/pulse
Coil resistance: 2.2 Ohms
Spray pattern: Cone
Connector type: Minitimer (EV1-style)
Dynamic tollerance: +/-6%
Time offset: ms
Linear PW (min): ms
Peak / Hold current: 4 / 1 Amps
TECHNICAL INFORMATION
All tests run with n-Heptane @ 20°C (+/-1°C), 3.0 Bar (+/-0.01 Bar), 14VDC (+/-0.05VDC), saturated driver with resistive / capacitive or 70V zener cutoff. Dynamic rate @ 2.5ms @ 10ms period (100Hz)
Injector flow rates are based on testing with n-Heptane test solvent (0.6855 g/ml). U.S. EPA emission test gasoline 40CFR86.113 (0.735g/ml) flows in most common injector designs at about a 3 to 4% higher rate than n-Heptane. A ratio of 1.035:1 can be used when converting the flow specifications above.
* Advanced tuning data available in our support forum for confirmed Racetronix customers only.
