Description

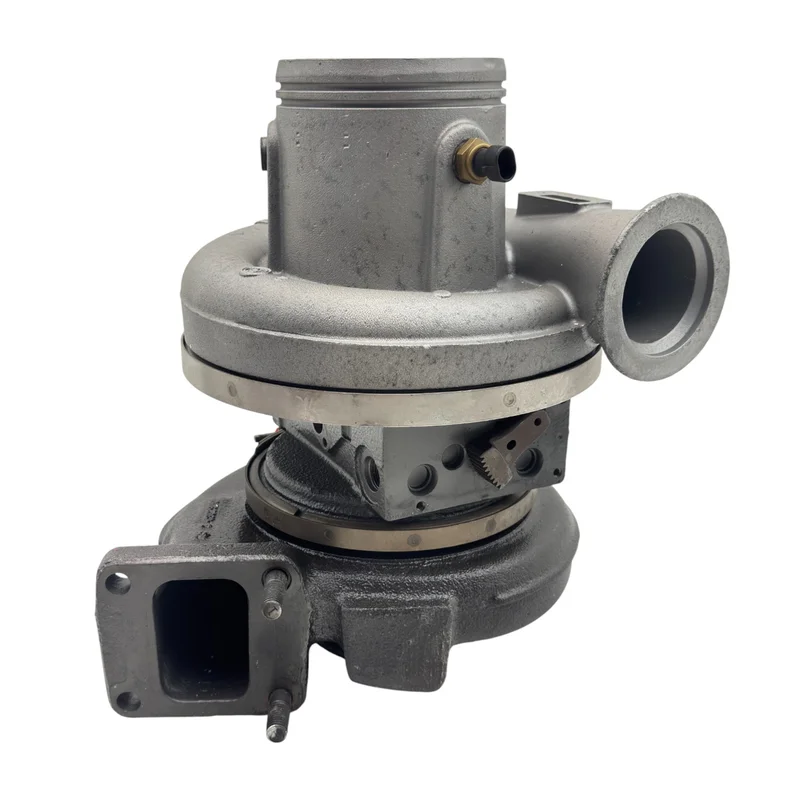

2007-2010 Genuine Cummins ISX HE500 Turbocharger without Actuator
This genuine Cummins HE500 turbocharger without actuator is built for select Cummins ISX applications, cataloged for 2007-2010.
Additional catalog detail: turbo without actuator: HE500/HE561VE, 100MM outlet 425-470 HP; turbo without actuator: HE500/HE561VE, 106MM Outlet; HE500/HE561VE, 100MM outlet 425-470 HP; HE500/HE561VE, 106MM….
Specifications
| Brand | Cummins |
| Part Type | Turbocharger Actuator |
| Part Numbers | 5359785REMAN, 5359785, 170-032-2398, 170-032-2484, 170-032-2555, 170-032-3148, 1700321112, 2836356, 2836357, 2838153, 2838154, 2840519, 2840520, 2840521, 2881785, 2881785NX, 2881785RX, 2881997, 2881997NX, 2881997RX, 3767615, 3767622, 3767630, 3774601, 3774612, 3774626, 3774640, 3780526, 3792776, 3792786, 3795162, 4042413, 4045031, 4045034, 4309076, 430907600, 430907600HX, 4309076HX, 4309076NX, 4309076RX, 4620744, 4955425, 4955425NX, 4955425RX, 4956010, 4956010NX, 4956010RX, 5350611, 5350641, 535064100, 5350893, 535089300H, 5350893H, 5350893HX, 5355196, 535519600, 535519600HX, 5355196H, 5355196HX, 5359785NX, 5359785RX, 5456738, 545673800H, 5456738H, 5456815, 545681500H, 545681500HX, 5456815H, 5456815HX, 5457297, 5457297NX, 5457297RX, 5550526 |
| UPC | 715649AT |
| Weight | 80.0 lb |
| Year Range | 2007-2010 |
| Engine / Fitment | ISX |
| Application Part Type | Turbocharger Assembly |
| Application Notes | turbo without actuator: HE500/HE561VE, 100MM outlet 425-470 HP; turbo without actuator: HE500/HE561VE, 106MM Outlet; HE500/HE561VE, 100MM outlet 425-470 HP; HE500/HE561VE, 106MM Outlet |
| Core Charge | No core charge. Contact us if you would like to sell your core. |
Fitment Note: A matching part number can fit additional engine models or years. Contact us or use the Parts Verification Form below to confirm fitment.
